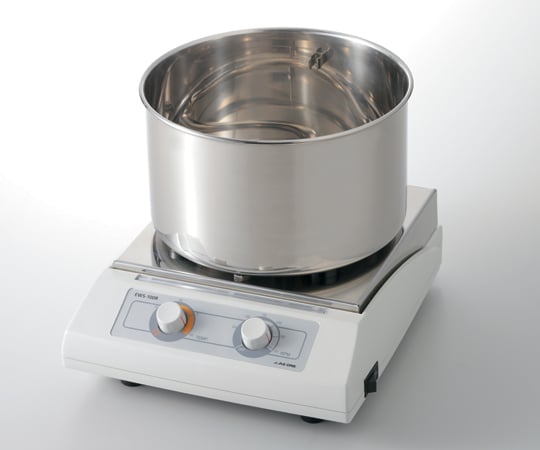

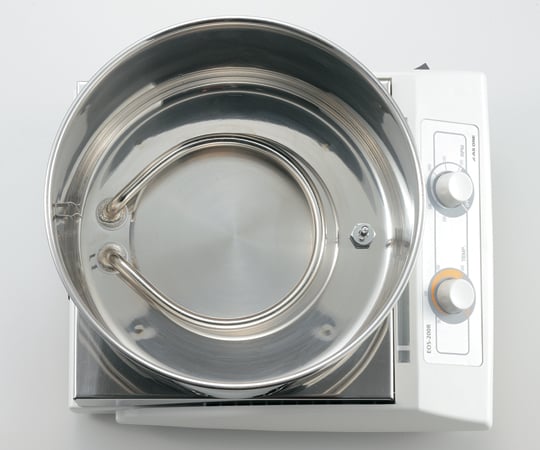

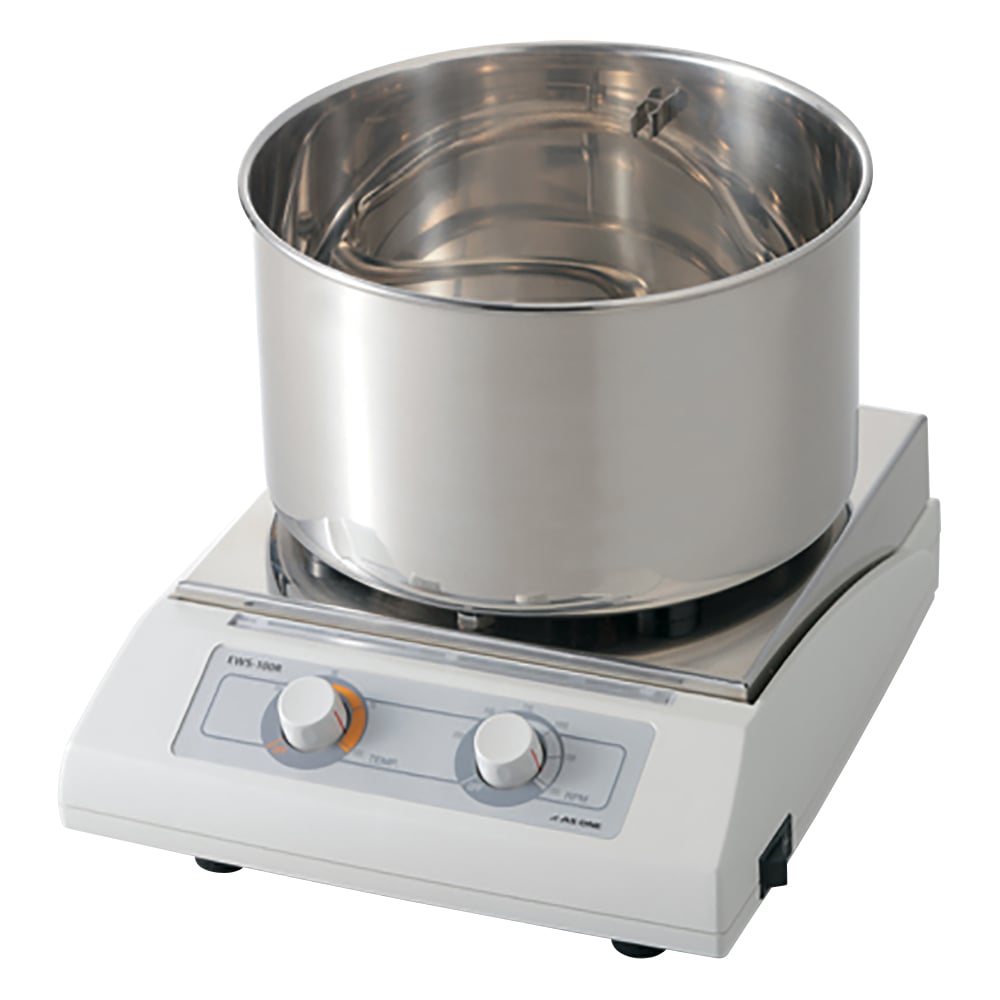

EC Water Bath Stirrer Analog Type EWS-100R 1 unit

Stable rotation speed control is possible through microcomputer feedback control. Made of engineering plastic (Noryl resin(R)), it has excellent strength, heat resistance, and chemical resistance. Temperature and rotation speed can be controlled independently, making setting easy. If the temperature rises too high, the heater will be forcibly turned off and an error message will be displayed. Analog Temperature setting range: Room temperature +5 to 95°C Temperature control method: Microcomputer proportional control Rotation speed setting range: 100 to 1500 rpm Weight: Approx. 3.3kg Temperature sensor: Resistance thermometer (Pt100Ω) Motor: AC motor Material: Body: Noryl resin (R), tank: stainless steel (SUS304), heater: stainless steel (SUS304) nickel-plated Heater capacity: 750W Safety devices: overheat protection device, overcurrent protection fuse Power supply: AC100V, 50/60Hz, 800W (cord length 2m, 3P plug) Accessories: Stirrer (φ8×30mm) × 1 External dimensions: 240 x 280 x 220 mm Tank interior dimensions (mm): φ208×123 *When stirring the sample directly, do not use a grate but use a container with a diameter of 110 mm or less. Model number: EWS-100R This product can be provided with validation services (IQ/OQ). Please feel free to contact us. *Validation service refers to the performance of installation qualification (IQ) and operational qualification (OQ) at the customer's site and the submission of an inspection report.
