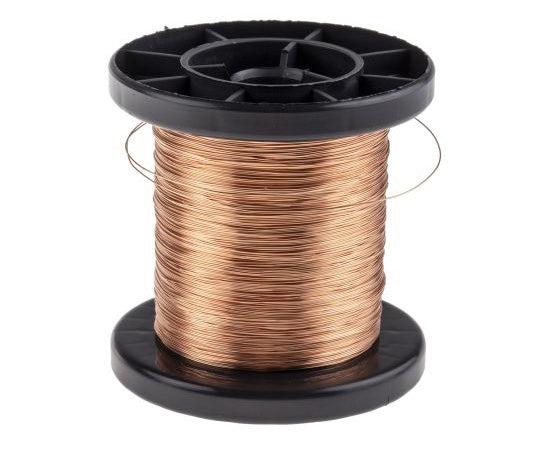

Enamelled copper wire 0 22mm 100gr CUL 100/0,22 1pc

Block enamelled copper wire Block's enameled copper wire products are supplied on plastic reels. This single strand copper wire has a thin coating of enamel which acts as an excellent insulator and provides excellent chemical and heat resistance. The enamel coating also helps prevent short circuits. Enameled copper wire or wire is especially useful for producing high density coils. Block's insulated copper wire is supplied in a variety of diameters, AWG (American Wire Gauge) sizes and current ratings. Features and Benefits: Excellent insulation properties Copper has excellent chemical and corrosion resistance Long-term heat resistance Solderable Applications: Enamelled copper conductor single strand wire is used in a variety of electronics manufacturing industries. The most common applications are: Motor coil production Transformer windings Inductors for electronic devices Relay coils Speaker coils Potentiometers Quantity: 1 Cross-sectional area: 0.04mm2 AWG American Wire Gauge: 31 AWG Core strand: 1/0.22mm Insulation material: PUR Outer diameter: 0.22mm Length: 215m Operating temperature mAx: +155°C Cable Type: Single Core RoHS Compliance Status: Compliant Code number: 779-0690
