It is produced in large quantities and is used in a variety of places.
RoHS compliant.

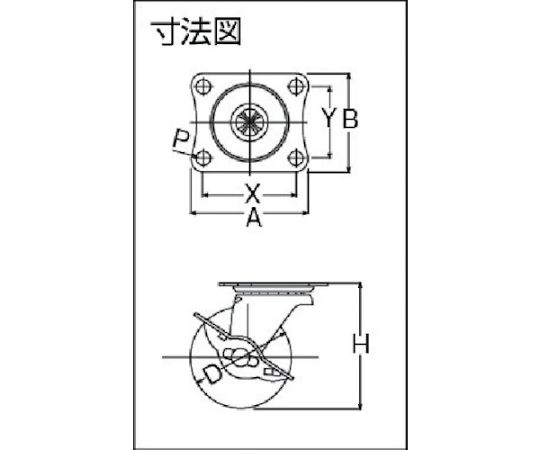

An all-purpose lightweight type that can be used both indoors and outdoors. Wheel diameter D (mm): 50
Type: Swivel (with stopper)
Allowable load (daN): 30
Allowable load (kgf): 30.6
Wheel width (mm): 20
Mounting height H (mm): 65
Mounting seat A (mm): 59
Mounting seat B (mm): 47
Mounting pitch X (mm): 46
Mounting pitch Y (mm): 35
Mounting hole diameter P (mm): 6.5
Allowable load (N): 300
Plate Type
Wheel shape: Nylon wheel, rubber wrapped wheel
Material/Finish: Metal fittings/Steel, Metal fitting surface treatment/Trivalent chromium plating finish, Wheels/Rubber
Country of Origin: Japan
Code number: 221-8933
