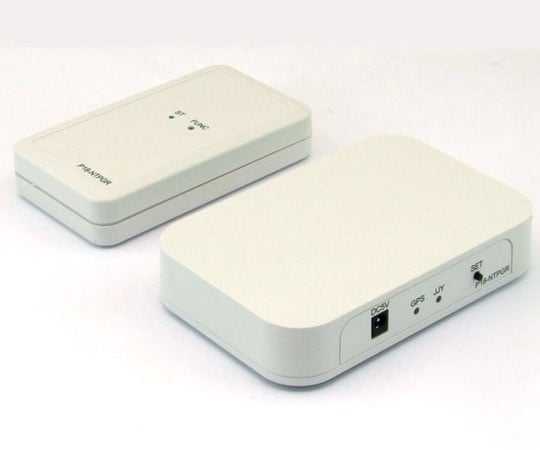

GPS radio clock repeater P18-NTPGR 1 set

The P18-NTPGR is a time repeater that transmits time information to radio-controlled clocks based on the time data transmitted by GPS satellites. Since the time received from GPS satellites is used, no internet connection or data communication such as LTE (mobile phone) is required. The maximum distance for transmitting time information to a radio-controlled clock is 10m. Width x Depth x Height (mm): 150 x 102 x 30 Power supply: DC5V 250mA (normal operation) Uses a dedicated AC adapter Autonomous accuracy: Approx. ±1 second/day Time information transmission distance: Maximum 10m GPS slave Width x Depth x Height (mm): 76 x 135 x 27 Power supply: DC4V to 5V, maximum 450mA (0.02mA at steady state) Other: Test button Transmission status display Maximum distance between parent unit and child unit: Approximately 50m in line of sight Wi-Fi For JJY settings: 2.4GHz band Wi-Fi 802.11b/g/n ch1-ch13 For time relay: 2.4GHz band Wi-Fi 802.11 Layer 2 ch1-ch13 Radio clock transmission Transmitting frequency: 40kHz/60kHz switching Transmission timing: Always Frequency accuracy: 20 ppm Transmission power: Weak output adjustable Transmitting antenna: Bar antenna (placed horizontally inside the housing) Modulation method: AM 90% modulation Encoding: JJY compliant Other: Time transmission function including time difference *Please note The time acquired may contain an error of up to ±1 second. Operation requires an environment where GPS satellite signals can be received. To change the settings, you will need a device such as a PC or smartphone that can connect to Wi-Fi. Quantity: 1 set
