HIKMICRO Pocket series compatible macro lens for Pocket1, Pocket2, PocketE HM-P201-MACRO 1 piece
HIKMICRO Pocket series compatible macro lens for Pocket1, Pocket2, PocketE HM-P201-MACRO 1 piece
Regular price
¥15,950
Regular price
Sale price
¥15,950
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
[High-precision temperature measurement]
This product achieves a temperature measurement accuracy of ±3℃ or ±3% error.
The measurable temperature range is wide, from -20℃ to 150℃, making it suitable for use in a variety of environments.

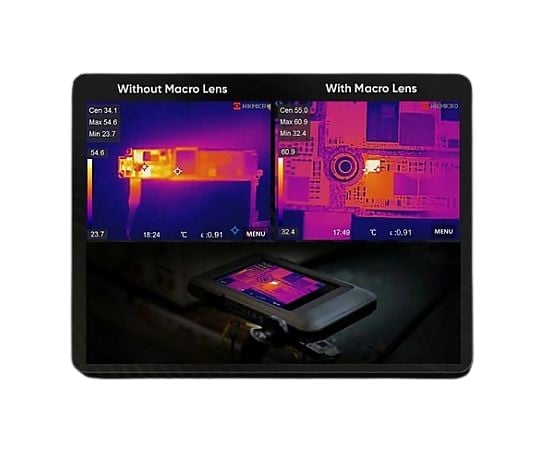

[Fine measurements possible]
This macro lens provides precise measurements with a spot size of 100μm.
In addition, the minimum measurement size is 500 μm, allowing measurement of fine details.
[Wide working distance]
The working distance is 30mm, allowing you to take photos and measurements from a comfortable distance without getting too close to the subject.
This allows you to work safely and efficiently.

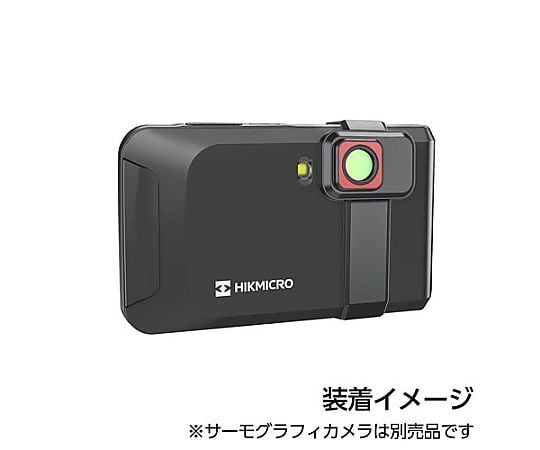

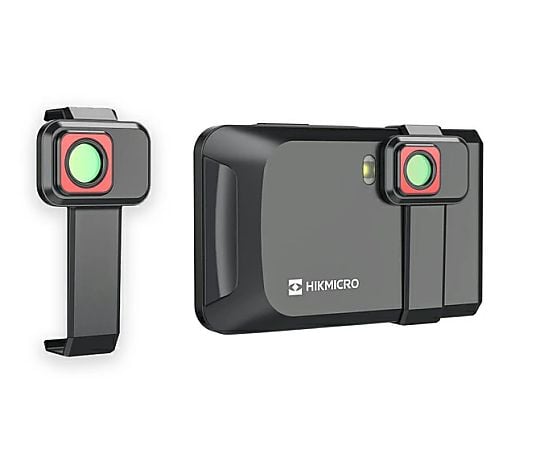

[Compatible with Pocket Series Cameras]
This macro lens is compatible with the Pocket Series cameras and is easy to carry around, making it ideal for field work or measurements on business trips.
[Magnification ratio 0.12x]
The magnification is 0.12x, allowing you to capture small subjects in a large size.
It provides high performance when observing or measuring minute details. Weight: 9g

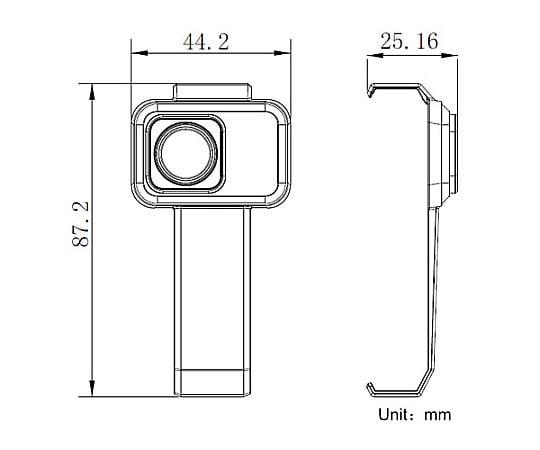

Dimensions: 44.2 x 25.16 x 87.2mm
Focal length: 4.1mm
FOV (field of view): 47.6° (H) x 36.1° (V)
IFOV (spatial resolution): 2.93mrad
Minimum shooting distance: 30mm±1
Minimum image sensor size: 100 x 100 μm
Minimum temperature object size: 500 x 500㎛
Applicable temperature range: -20 to 150°C
Measurement accuracy: Maximum ±3°C, ±3% (when the target temperature is 0 to 150°C)
Operating temperature range: -20 to 150°C
