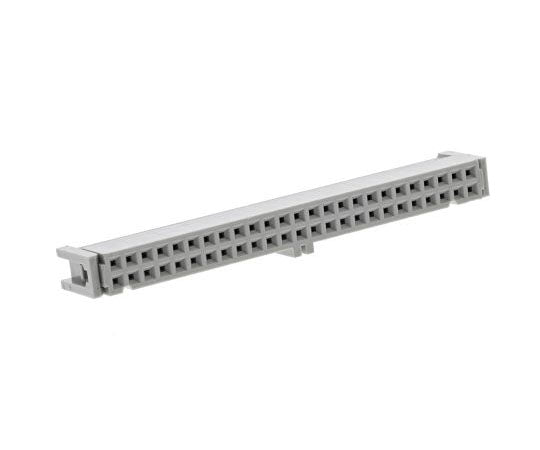

IDC connector 50 poles, 2 rows, female, 2.54mm pitch, 89150-0101, 1 piece

3M 891 Series 2.54 x 2.54mm IDC Ribbon Cable Sockets 891 series 2.54 x 2.54 mm IDC ribbon cable sockets. Features military polarity and centre bump. 891 series IDC ribbon cable socket connector cover is recessed on both sides allowing cables to be terminated from either side. Supplied fully assembled. Strain relief (typical part numbers: 192-7530 192-7530 ) sold separately. Quantity: 1 Number of contacts: 50 Number of rows: 2 Male/Female: Female Pitch: 2.54mm Mounting Type: Cable Mount Body orientation: Right angle Termination method: IDT Rated current: 1.25A Contact plating: Gold over nickel Operating temperature Min: -55°C Operating temperature Max: +105°C Housing material: PBT RoHS Compliance Status: Compliant Code number: 192-7518
