M6-M24 Tap Die Set (Coarse/Fine) EA829VX-2 1 set
M6-M24 Tap Die Set (Coarse/Fine) EA829VX-2 1 set
Regular price
¥23,540
Regular price
Sale price
¥23,540
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
<Set contents>
20 medium taps, 20 dice

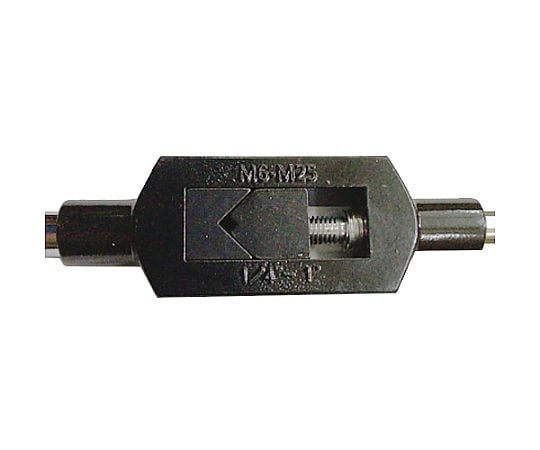

Tap handle
Dice Handle
driver
T-shaped tap handles can be used with taps of size M6 and M8. Sizes: (metric coarse and fine) M6 x 1.0, M6 x 0.75, M8 x 1.25, M8 x 1.0, M10 x 1.5, M10 x 1.25, M12 x 1.75, M12 x 1.5, M14 x 1.5, M14 x 2.0, M16 x 1.5, M16 x 2.0, M18 x 1.5, M18 x 2.5, M20 x 1.5, M20 x 2.5, M22 x 1.5, M22 x 2.5, M24 x 1.5, M24 x 3.0
Die outer diameter: M6 x 1.0, M6 x 0.75, M8 x 1.25, M8 x 1.0, M10 x 1.5, M10 x 1.25, M12 x 1.75, M12 x 1.5, M14 x 1.5, M14 x 2.0, M16 x 1.5, M16 x 2.0, M18 x 1.5, M18 x 2.5 / 38 mm M20 x 1.5, M20 x 2.5, M22 x 1.5, M22 x 2.5, M24 x 1.5, M24 x 3.0 / 50 mm
Material: Alloy steel
Case size: 590 x 340 x 30 (T) mm
Compatible work material: Soft iron material with hardness of HRC20 or less
