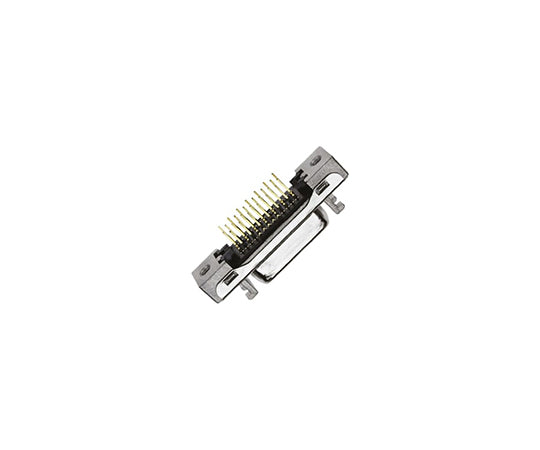

Micro D-Sub female connector, 36 poles, 10236-6212PC, 1 piece

The pitch spacing listed is the pitch spacing of the PC tail. Straight Panel Mount Through Hole Receptacle 102 Series with Screw Lock This 3M Mini-D Ribbon (MDR) 102 series PCB shielded receptacle comes with M2.5 or M2.6 lockdown screws. The design incorporates a latching interface to ensure a stable connector connection. Mating: 101XX-6000 series plugs, typical part number: 163-3285 163-3285 See Mating: 101XX-3000 series plugs, typical part number: 515-7476 515-7476 See N 102xx-xxxxxx: Heat resistant PCT insulator x102xx-xx 0 xxx: M2.6 panel and screw locking x102xx-xx 1 xxx: M2.5 panel and screw locking x102xx-xxxxP C: 0.76 μm gold plating on contacts, gold plating on tails x102xx-xxxxP L: 0.2 μm gold plating on contacts, gold flash plating on tails and lubricant Qty: 1 pc Number of contacts: 36 Gender: Female Body Orientation: Straight Mounting Type: Through Hole Pitch: 1.27mm Rated current: 1A Housing material: Zinc alloy Length: 43.5mm Width: 11mm Depth: 9.1mm Dimensions: 43.5 x 11 x 9.1 mm Operating temperature Min: -20°C RoHS Compliance Status: Compliant Code number: 770-9161 RoHS2 (EU)2015/863 compliant [About RoHS]
