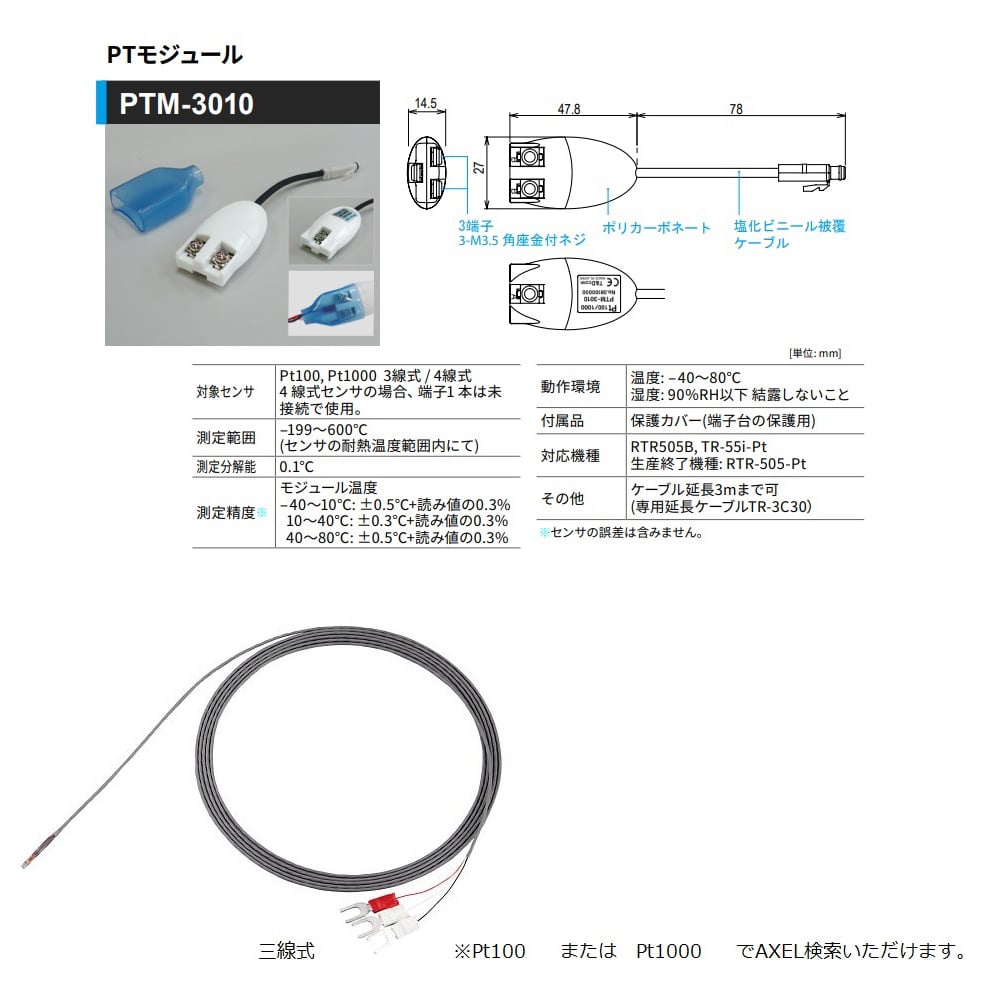

Pt module PTM-3010 1 piece

Compatible models: TR-55i-Pt, RTR-505-Pt, RTR-505-PtL, RTR505B, RTR505BL Measurement target: Temperature Applicable sensors: Pt100 (3-wire, 4-wire), Pt1000 (3-wire, 4-wire). For 4-wire sensors, leave one wire unconnected. Measurement range: -199 to 600°C (limited to within the sensor's heat resistance range) Measurement resolution: 0.1°C Measurement accuracy: Module temperature (sensor error not included) -40 to 10°C: ±0.5°C + 0.3% of reading 10 to 40°C: ±0.3°C + 0.3% of reading 40 to 80°C: ±0.5°C + 0.3% of reading Sensor connection: Screw terminal block, 3 terminals, with square washer (3-M3.5) Operating environment: -40 to 80°C, humidity 90% or less (no condensation)
