SD Logger 5 DT-SDL5 1 piece

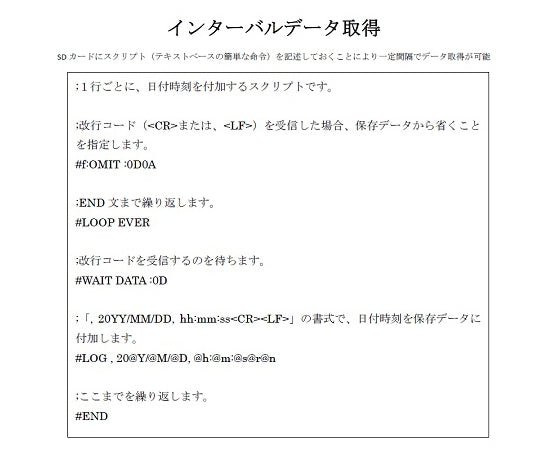

The successor to the SD Logger 4, which inherits all of its functions. Now with a smart new design! Easily save serial data to an SD card without needing a PC! The DIP switch allows you to easily set the RS-232C communication parameters, allowing you to connect to a variety of RS-232C devices. Supports SD cards up to 32GB (SDHC) You can add the date and time to the data. You can create simple commands (scripts) as text files on the SD card to acquire data at intervals (only one function). By connecting it to the related product, the analog serial converter DT-ASC04i (part number: 63-3360-05), you can record analog data to an SD card. By using the RS-232C distribution adapter (part number: 64-6447-87), you can record data on the SD Logger 5 while simultaneously sending data to a PC or printer. Custom orders are accepted, so please feel free to contact us. Configurable data bits: 7/8 bits Configurable communication speed: 300/1200/2400/4800/9600/19200/38400/57600/115200/230400bps Configurable parity: none/odd/even Battery for built-in clock: CR2032, new battery lasts for approx. 7 years (lifespan) *The battery provided at the time of shipment is for monitor use. Power supply: DC8V~12V Supported SD cards: SD/SDHC up to 32GB Current consumption: Maximum 100mA Operating temperature range: 0℃ to 60℃, 10-90% RH *No condensation External dimensions: W100 x D100 x H35mm Weight: 139g Accessories: AC adapter 100-240V 50/60Hz
