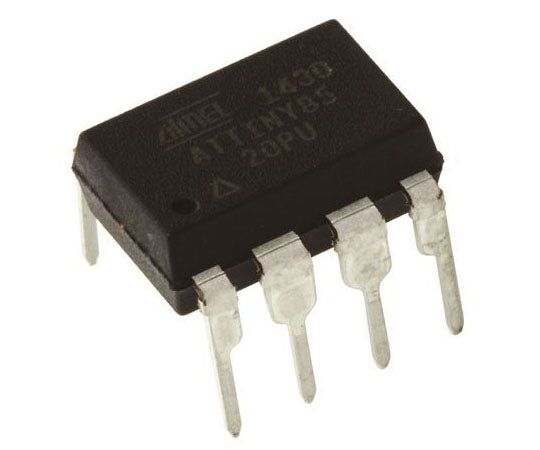

Technology Microcontroller 8-bit RISC AVR 20MHz 8 kB Flash 8-Pin PDIP 1 bag (5 pieces) ATTINY85-20PU 1 bag (5 pieces)

ATtiny85 8-bit tinyAVR microcontroller The Atmel ATtiny85 microcontroller is an 8-bit device based on the AVR enhanced RISC architecture. The Atmel tinyAVR device, ATtiny85, is a small packaged microcontroller that combines excellent performance and power efficiency, making it ideal for applications where space is at a premium. By executing a wide range of instructions in a single clock cycle, the ATtiny85 balances power consumption and speed, achieving a throughput approaching 1 MIPS/MHz. Microcontroller Features 20MHz maximum operating frequency 8 KB Flash 512 Bytes EEPROM 0.5 KB SRAM 120 instructions - most execute in a single clock cycle 32 general purpose registers 6 GPIOs debugWIRE on-chip debug system In-system programmable via SPI port External and internal interrupt sources Low power idle, ADC noise rejection and power-down modes Enhanced power-on reset circuit Programmable brown-out detection circuit Built-in calibrated oscillator Peripheral Functions Equipped with 8-bit timer/counter, prescaler and two PWM channels Equipped with 8-bit high-speed timer/counter and independent prescaler Equipped with Universal Serial Interface (USI) and start condition detection function 10-bit A/D converter - 4 channels Programmable watchdog timer (with independent on-chip oscillator) On-chip analog comparator Quantity: 1 bag (5 pieces) Family name: AVR Package type: PDIP Mounting type: Through hole Number of pins: 8 Device core: AVR Data bus width: 8 bits Program memory size: 8 kB Maximum frequency: 20MHz RAM size: 512 B - USB channel: 0 Number of PWM units: 1 Number of ADC channels: 4 Standard operating supply voltage: 2.7 → 5.5V Dimensions: 10.16 x 7.112 x 4.826mm RoHS Compliance Status: Compliant Code number: 133-1672
