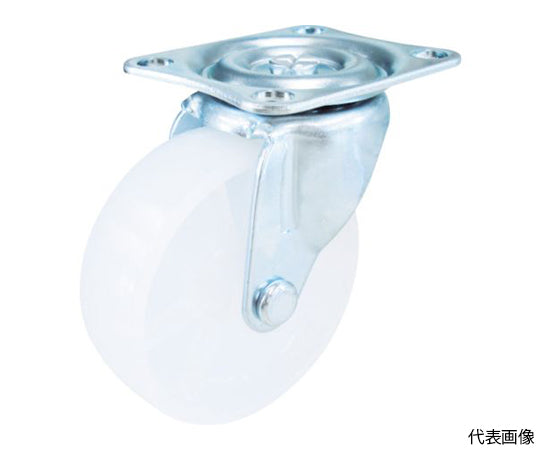

TYG Series, Swivel Nylon Wheel, 50mm, TYGNY-50, 1 piece
TYG Series, Swivel Nylon Wheel, 50mm, TYGNY-50, 1 piece
Regular price
¥330
Regular price
Sale price
¥330
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
A small caster with excellent maneuverability and load-bearing capacity.

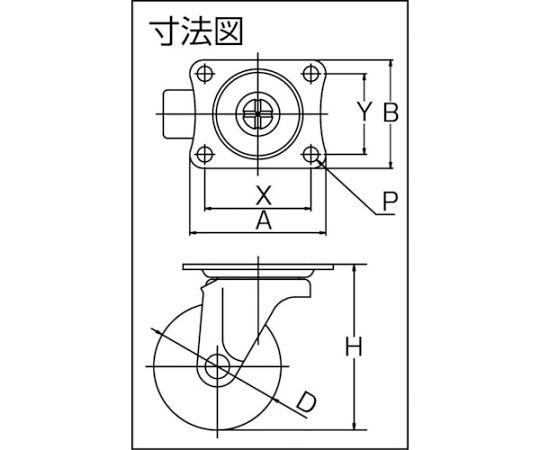

For a wide range of applications, including office equipment, furniture, transport vehicles, and lightweight racks. Wheel diameter D (mm): 50
Type: Free-standing
Allowable load (daN): 38
Allowable load (kgf): 38.8
Wheel width (mm): 21
Mounting height H (mm): 65
Mounting seat A (mm): 59
Mounting seat B (mm): 47
Mounting pitch X (mm): 46
Mounting pitch Y (mm): 35
Mounting hole diameter P (mm): 6.5
Plate Type
Free-standing
Material/Finish: Metal fittings/Steel, Metal fitting surface treatment/Trivalent chromium finish, Wheels/Nylon
Country of Origin: Japan
Code: 856-4117
