UV Auto Dry Desiccator 530 x 345 x 335mm Cuts 520nm or less UVOL-520SA 1 unit
UV Auto Dry Desiccator 530 x 345 x 335mm Cuts 520nm or less UVOL-520SA 1 unit
Regular price
¥85,140
Regular price
Sale price
¥85,140
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
A solid polymer electrolyte membrane is used to directly electrolyze and continuously remove moisture from the air inside the cabinet, allowing for stable dehumidification.
With a power consumption of just 3 watts, it can be used economically as a dehumidifying storage unit that is always turned on.
Moisture inside the cabinet is released directly in gaseous form, so no water droplets (drain) are produced. Auto-dry type
Material: Transparent PMMA (acrylic) (cuts out wavelengths below 520 nm)
Dehumidification method: H2O electrolysis and emission by solid polymer electrolyte membrane
Humidity reached: 25% RH (when no load is applied inside the cabinet, depending on the usage environment)
Dehumidification element membrane area: 30 x 30 mm
Power supply: AC100 50/60Hz*
Power consumption: 3W
Shelf spacing: Bottom shelf: 50mm, others: 30mm
Weight: 5.4kg
Power cord length: Approx. 2m (2P plug)
External dimensions (mm): 530 x 345 x 335 (including dehumidification unit)
Internal dimensions (mm): 485 x 275 x 285

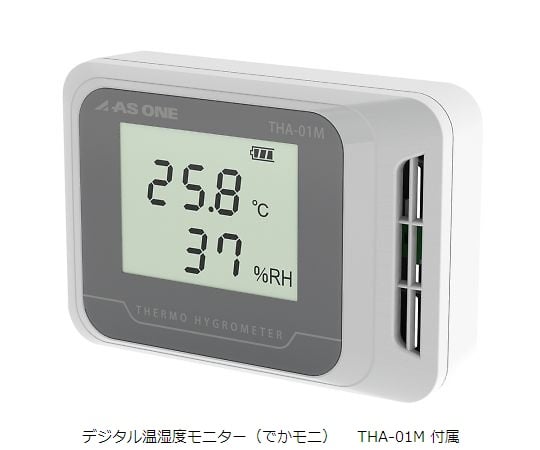

Accessories: 2 shelves, 1 silica gel dish, digital temperature and humidity monitor (THA-01M)
*The dehumidification unit is AC85-264V, but the power cable is rated for AC125V for domestic use, so please be careful about the power supply you use.
