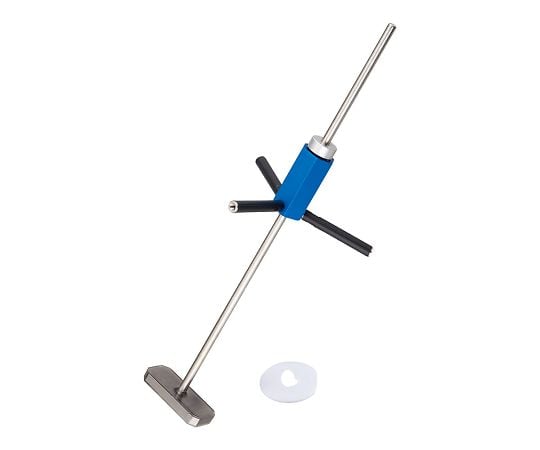

VOLTEGA magnetic stirring unit VP-YG1C 1 unit

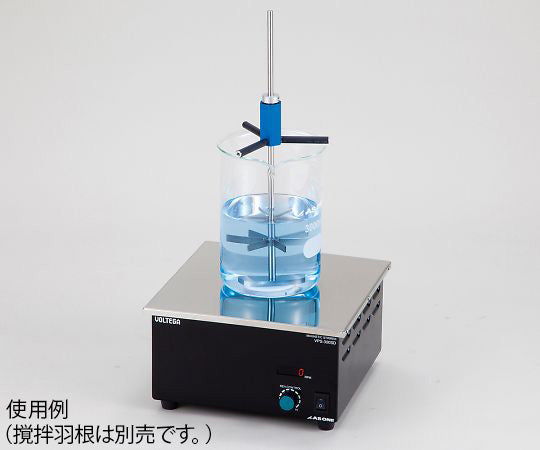

This is a magnetic stirring unit exclusively for VOLTEGA. It is suitable for samples where wear on the rotor is a concern. The magnet base is epoxy coated making this an easy to maintain unit. Assumes use of a 2L beaker with a diameter of approximately 135mm. By using the separately sold VP-YG1P (extension bar), it can accommodate containers up to Φ300 x 300 mm. VOLTEGA, which uses a motor of 15W or more, enables mixing of medium and high viscosity materials. Since the shaft diameter is Φ8mm, it is also possible to add a tornado stirring blade (1-5505-※※). Stirring unit that uses the magnetic force of a stirrer External dimensions (mm): Φ170×410 - Weight(kg):0.6 Stirring method: Rotational stirring by magnetic force transmitted from a stirrer (assuming a 2L beaker) Material: Body: Aluminum (anodized) and SUS304, Magnet base: SUS430 and epoxy Magnet: Type: Neodymium x 2 (0.22T), Magnet pitch: 43mm, Polarity: NS Heat resistance: 80℃ Accessories: 1 hex wrench
