X-axis compact rack and pinion stage size 25 x 30 mm TAR-25121 1 piece

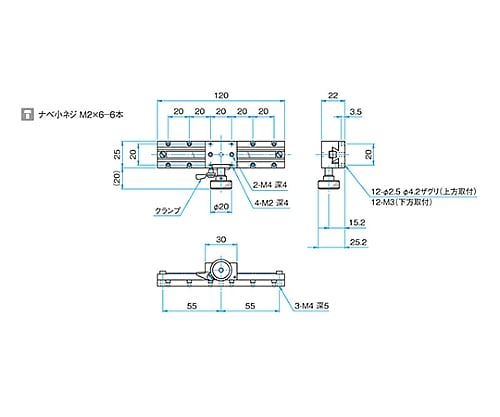

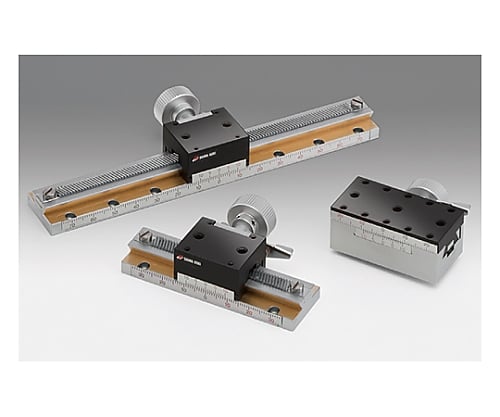

Using a dovetail guide and rack and pinion system, this stage is suitable for situations where the frequency of operation is relatively high and fast movement and distance are required. The table surface size is 25 x 30 mm and it is a long stroke dovetail stage. The feed handle and adjustment knob make it easy to operate. *The TARW-25501 cannot be fixed directly to a flat surface because the feed handle protrudes from the bottom of the stage body. *Spacers or other tools are required. Table surface size: 25 x 30 mm Travel: ±45mm Movement/1 rotation: Approx. 20 mm Vernier scale: 0.1mm Movement guide: Dovetail method Main material: Shinchu Surface treatment: Super black chrome Load capacity: 49N (5.0kgf) Movement accuracy/straightness: 40μm Allowable moment load/pitching: 0.5N･m Permissible moment load/rolling: 0.5N･m Permissible moment load/yawing: 0.5N･m Moment stiffness/pitching: 2.03″/N･cm Moment stiffness/rolling: 1.53″/N･cm Parallelism: 80μm Mass: 0.3kg RoHS Compliant
