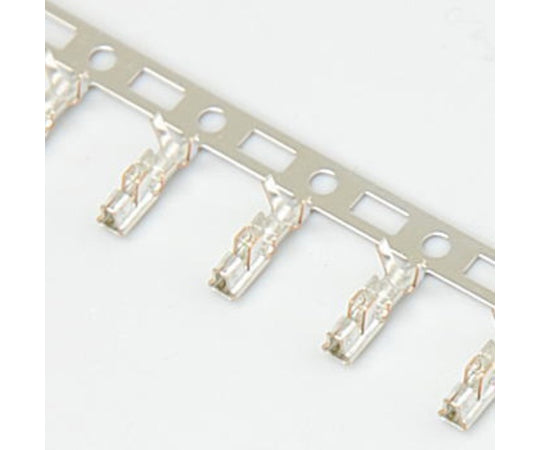

XA connector contact SXA-001T-P0.6 1 piece

This is a contact (conductor) pin for the XA series connectors made by JST (Japan Solderless Terminal). This pin and housing make up the cable connector (sold separately). The wiring is crimped onto this contact using a special tool. If you are using it informally for hobby use, there is a high risk that it will come loose if you simply crush the connection with pliers or something similar. Be careful not to get solder on unnecessary parts. Pitch: 2.5mm Connector type: Contact Number of pins: - Rating: 250V-3.0A Suitable wire: AWG28 to AWG22 0.08 to 0.33 mm2 Material: Phosphor bronze Surface treatment: Tin plating Compatible housing: XA series Quantity: 1 piece
