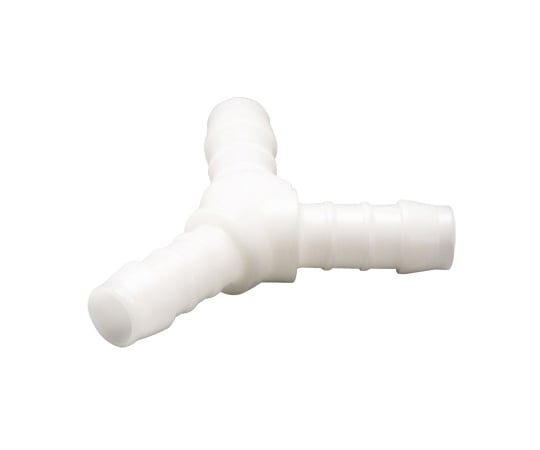

Y-type hose joint Polyacetal YS-06 1 piece

Lightweight hose fittings with excellent mechanical properties, fatigue resistance, creep resistance, heat resistance and dimensional stability. Injection molded plastic fittings are suitable for sealing low pressure gases and fluids, and for sealing partial vacuum lines. Use this hose fitting in conjunction with a hand clamp for stable tightening. Deflection temperature under load: 110°C (1.82MPa) Applications: Ideal for drinking water, industrial water, oil and gasoline use. Material: Polyacetal (white) Maximum operating pressure: 1MPa Operating temperature range: -10℃ to +70℃ Bamboo shoot outer diameter (φD3): 7.5 φD2: 4 φD1: 6 L1: (44) L2: 20.5 Code: 11600902
